شرح تركيب كونفيجر اعدادات سيكتور تيتانيوم ام تو Ubiquiti Rocket M2 Titanium 2 4GHz الاسطورة القادمة 50 كيلو متر
السلام عليكم ورحمة الله وبركاته
اعضاء مدونة ميكروتيك العرب
جهاز خرافة هايدخل الاسواق الايام الجاية ينتشر عندنا فى مصر
ولك ان تتخيل ان التردد 2.4 هياخد وضعه من تانى
نشوف الاول الجهاز اللى معانا النهاردة
Ubiquiti Rocket M2 Titanium Powerful 2x2 MIMO airMAX™ BaseStation
The Ubiquiti Rocket M2 Titanium features enhanced radio perfomance and superior durability. The Rocket M2 Titanium has carrier-class capabilities that can link distances up to 50+ km and provide breakthrough speeds of up to 150+ Mbps.
Ubiquiti Rocket M2 Titanium Key Features
Rugged Weatherproof Die-Cast Aluminum Enclosure
High Throughput Gigabit Ethernet Port
Incredible 50+ km Range and 150+ Mbps Speed
The Rocket M2 Titanium takes advantage of its Gigabit Ethernet connection to deliver high throughput for reliable data transfers. The RocketM Titanium enclosure was specifically designed to improve performance in harsh RF environments and in extreme weather conditions.

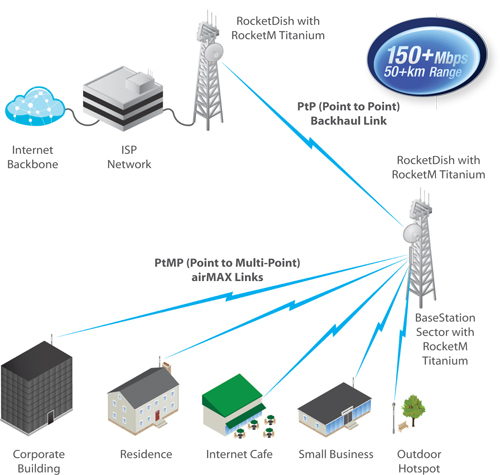

Enclosed in aircraft-grade aluminum, the Rocket M2 Titanium is a rugged, high-power, linear 2x2 MIMO radio.Rocket devices may be deployed in PtP bridging or PtMP airMAX BaseStation applications.
They can be paired with your choice of airMAX BaseStation™ Sector or RocketDish™antennas. This versatility gives network architects unparalleled flexibility and convenience.
Ubiquiti Rocket M2 Titanium airMAX BaseStation - Technical Specifications
System Information
Model RM2-Ti
Processor Specs Atheros MIPS 74KC, 550 MHz
Memory Information 128 MB SDRAM, 8 MB Flash
2 RP-SMA (Waterproof ) 1 SMA (GPS)
Regulatory / Compliance Information
Wireless Approvals FCC Part 15.247, IC RS210, CE
Physical / Electrical / Environmental
Dimensions 160 x 80 x 44 mm
Weight 350 g
Enclosure Characteristics Die-Cast Aluminum
Networking Interface
(1) 10/100/1000 Ethernet Port
(1) 10/100 Ethernet Port
Max. Power Consumption 6.5 Watts (RM2-Ti), 8.0 Watts (RM5-Ti)
Power Supply 48V, 0.5A PoE Adapter (Included)
Power Method 802.3af Compliant
ESD/EMP Protection 30KV Contact / Air for Ethernet
Operating Temperature -30 to 75° C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4
Software Information
Modes Station, Access Point, AP Repeater
Services SNMP, DHCP, NAT
Utilities Site Survey with Preferred SSID, Antenna Alignment Tool, Discovery Utility
Security WEP/WPA/WPA2
QoS 802.11e / WMM Support
Statistical Reporting Ethernet Activity, Uptime, Packet Success/Errors
LED Indicators
System LEDs Power, WAN, LAN, GPS (RM5-Ti only)
Antenna Align / Signal Strength LEDs Software Adjustable to Correspond to Custom Signal Strength Levels
RocketM5 Titanium Spec
Operating Frequency 2412 - 2462 MHz
Range Performance 50+ km (Outdoor - Antenna Dependent)
Output Power 28 dBm
طب ايه شكل الانتنا اللى بتركب عليها؟..
Ubiquiti Titanium Sector AM-V2G-TI Advanced RF Isolation Variable Beamwidth Antenna
The Ubiquiti airMAX Titanium Sector is a 2.4GHz Variable Beam Sector 60-120 Deg Antenna specifically engineered for optimal performance when paired with a Rocket™M Titanium.
20% increase in performance with PtMP networks
Up to 90% performance improvement in a co‑location environment
Increased durability in harsh weather
Providing adjustable beamwidth from 60 to 120 degrees combined with great isolation performance, the new titanium sectors provide additional scalability and noise immunity performance in hi-noise environments and co-location deployments.
Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti’s best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology.
Drawing on Ubiquiti’s depth of electrical and mechnical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co‑location deployments.
Adjustable Beamwidth Configuration
Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60˚, 90˚, or 120˚ sector. Antenna gain increases respectively with each decrease in beamwidth. Gain is 19 dBi at 120˚, 20 dBi at 90˚, and 21 dBi at 60˚.
Ubiquiti Titanium Sector AM-V2G-TI - Technical Specifications
Physical / Electrical / Environmental
Dimensions: 773 x 372 x 120 mm
Weight: 6.40 kg (with Brackets)
Frequency Range: 2.3 ‑ 2.6 GHz
Beamwidth Angles: 60°/ 90°/ 120°
Gain (Beamwidth Dependent): 17 dBi @ 60°, 16 dBi @ 90°, 15 dBi @ 120°
Elevation Beamwidth: 4°
Electrical Downtilt: 4°
Wind Survivability: 125 mph
Wind Loading: 92 lbs @ 100 mph
Polarization: Dual Linear
Cross-Pol Isolation: 25 dB Typical
Front-to-Back Ratio: 30 dB Typical
Max. VSWR: 1.5:1
RF Connectors: 2 RP‑SMA Connectors (Weatherproof )
Compatible Radios: RocketM2 Titanium, RocketM2
Mounting: Pole Mount (Kit Included)
ETSI Specification: EN 302 326 DN2
Certifications: CE, FCC, IC
شاهد فيديو الكونفيجر السليم اثناء جلسة تيم فيور
طبعا اهم حاجة تعمل على 20 ميجا هيرتز بس اختار قناة نضيفة
تحياتى لكم
شادى سوفت
انتظروا تقارير اكثر باذن الرحمن
